Nokia 7610 keypad malfunction and lcd lights Solution

Nokia 7610 keypad malfunction and lcd lights Solution

MODEL

NOKIA 7610

PRODUCT TYPE : RH-51



STATUS

KEYAPAD MALFUNCTION CALL / END CALL / 4 / 5 / 6

AND LCD LIGHTS










TOOL'S

SOLDERING IRON 40(w)

MAGNETIC WIRE

FLUX






PROCEDURE'S

DISMANTLE 7610

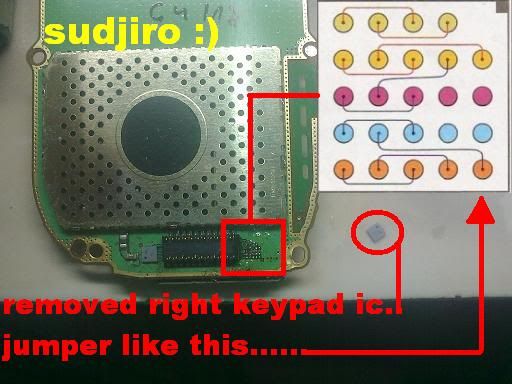

REMOVED RIGHT KEYPAD iC with SOLDERING IRON, FLUX and LED

JUMPER KEYPAD ic






AFTER KEYPAD ic LIGHT SOLUTION NAMAN

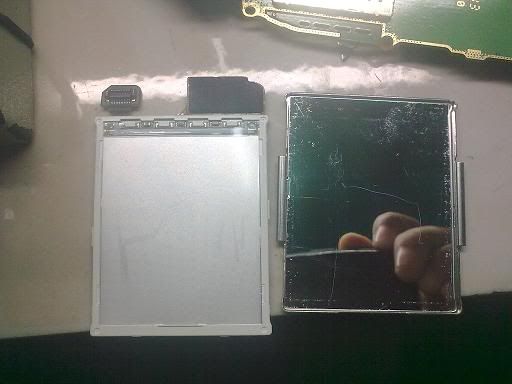

CAREFULLY DISMANTLE LCD LIKE THIS

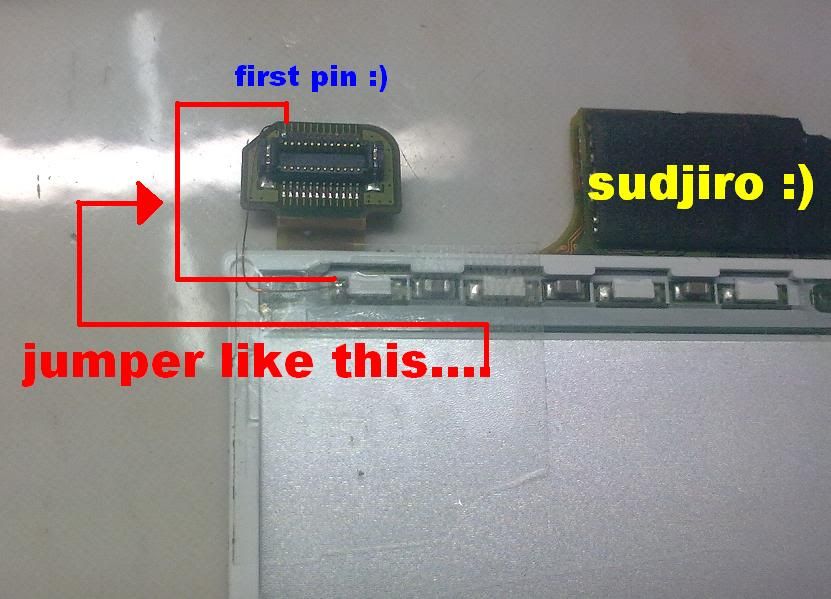

JUMPER LIKE THIS FOR LCD LIGHTS FOR 7610



This image has been resized. Click this bar to view the full image. The original image is sized 831x599.








TESTING LCD LIGHTS

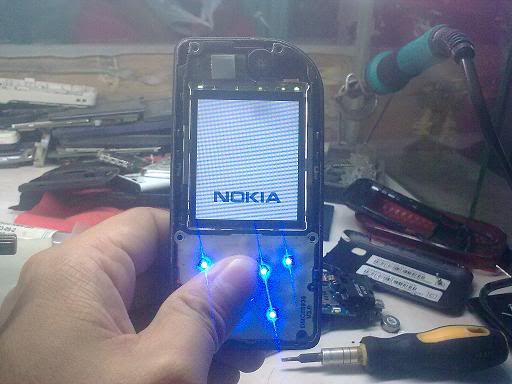

LCD LIGHTS OK!!!










TESTING KEYPAD

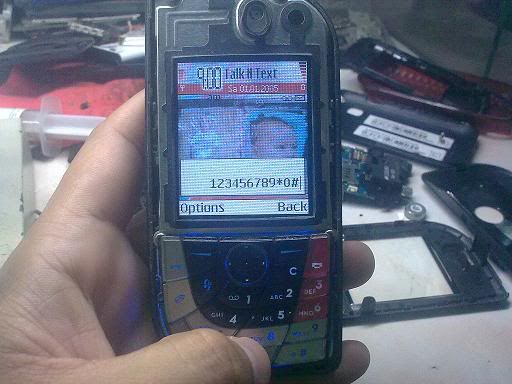

KEYPAD OK!!!
